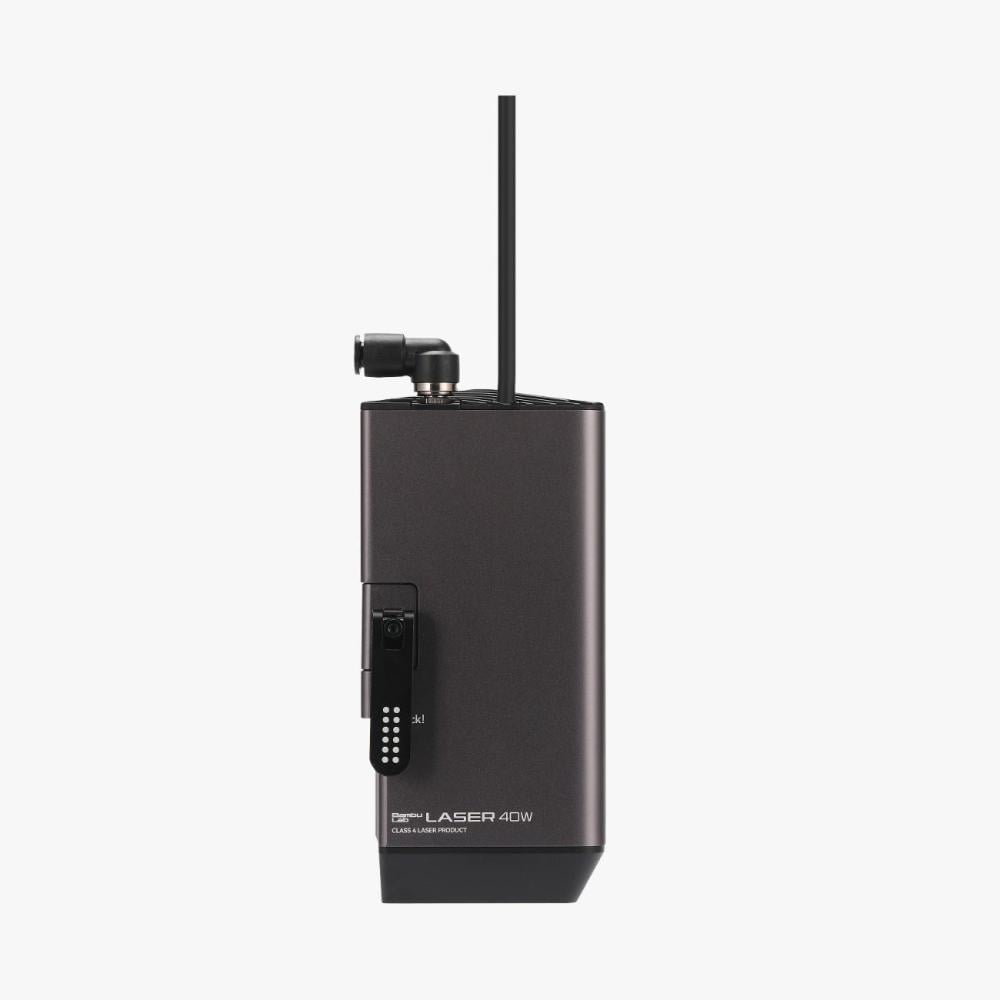

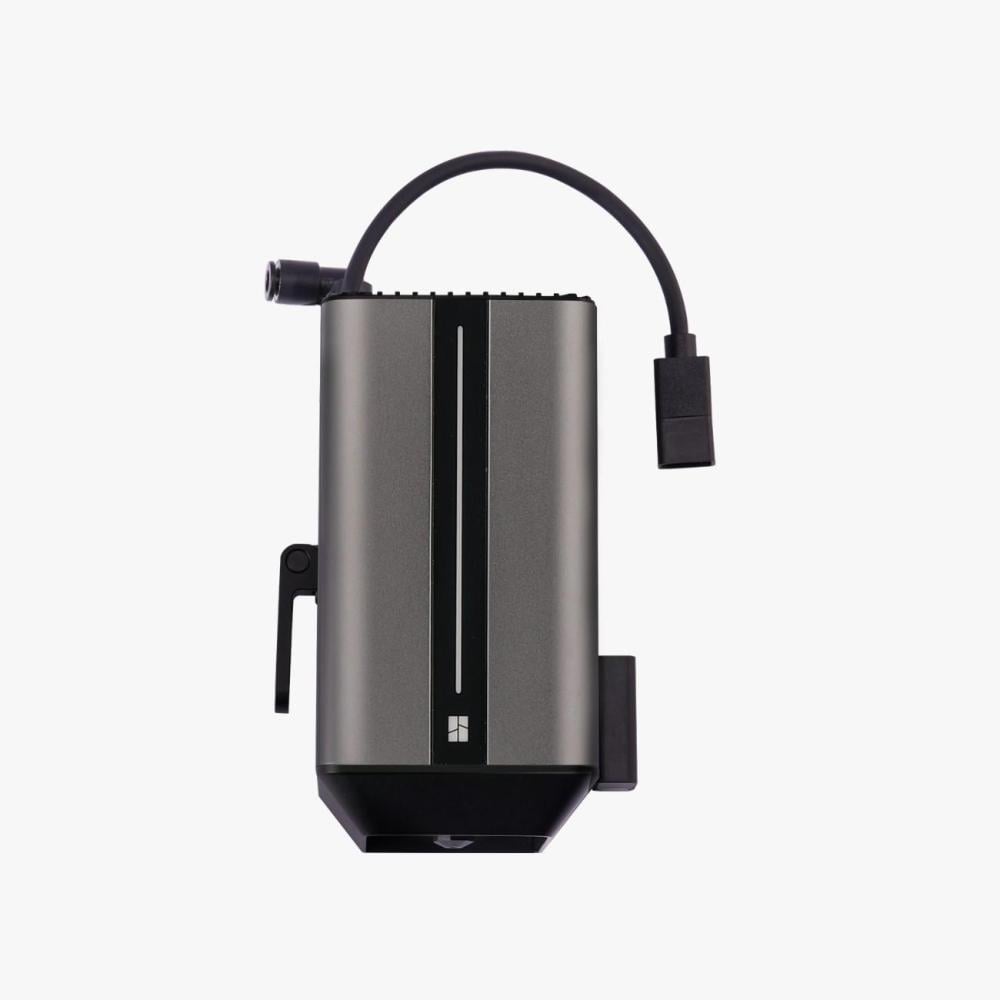

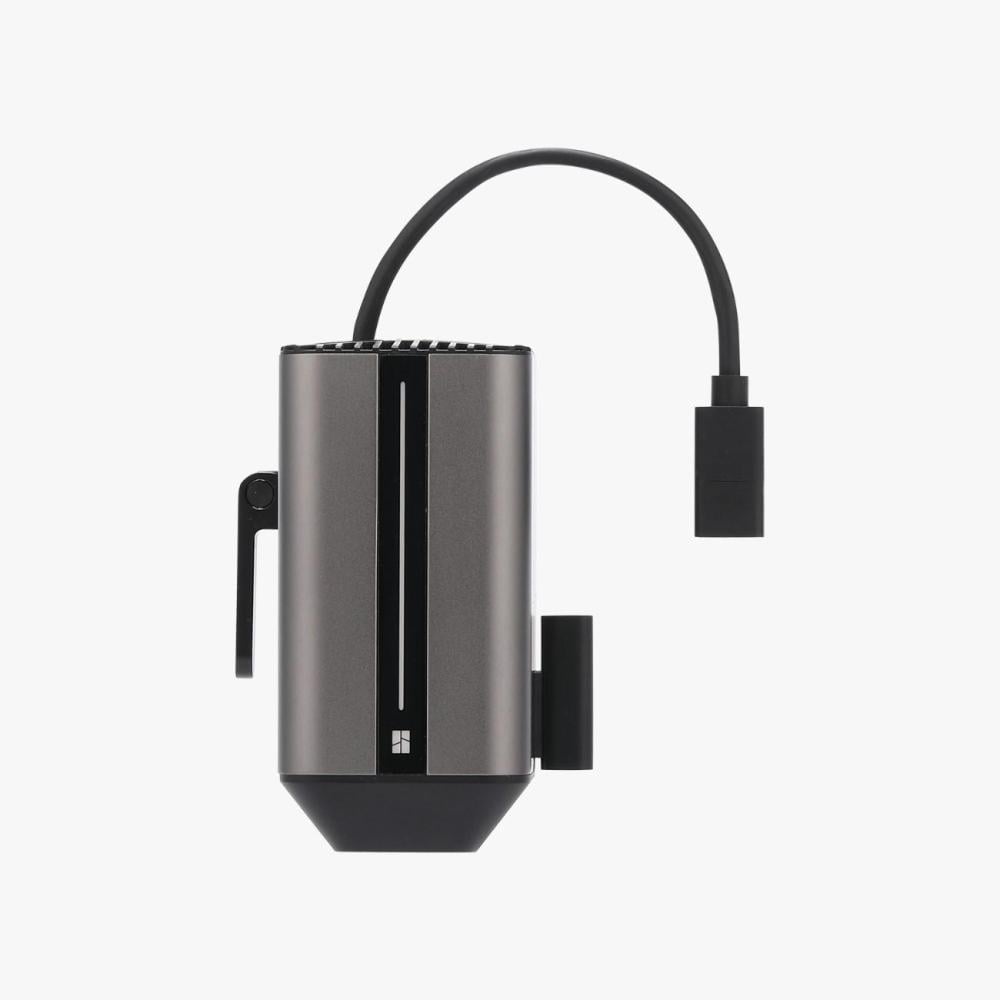

H2D Laser Upgrade Kit / Laser Module

A Hard Core Laser MachineHigh-Power 455nm Laser

High Positioning Accuracy

Built-In Flame Sensors

Air Assist Technology

Laser-Ready MaterialsThe laser module can easily process plywood, dark acrylic,

cork, metal, PU leather, and a wide array of

other materials.

Powerful Cutting Efficiency

With its high-power 455nm laser, 40W laser module achieves blazing speeds up to 1000mm/s and effortlessly cuts through thicker plywood in a single pass.

Contact-less 3D Mesh*

Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.

Air Assist

Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.

Flame Sensor

The H2D chamber is equipped with a flame sensor that can instantly detect fire. In the event of a fire, it quickly sends alerts through push notifications and a buzzer, minimizing potential risks.

What is the difference between 40W, and 10W?

Max Cutting Thickness

Laser Module40 W10 WBasswood Plywood15 mm6 mmBirch Plywood15 mm6 mmBamboo Board6 mm3 mmBlack Acrylic15 mm3 mmCork Sheet4 mm2 mmStainless Metal0.1 mm0.05 mm

Max Cutting Speed (Single Pass)

Laser Module40 W10 W3mm Basswood16 mm/s5 mm/s4mm Basswood15 mm/s4 mm/s6mm Basswood10 mm/s2 mm/s10mm Basswood4 mm/s/

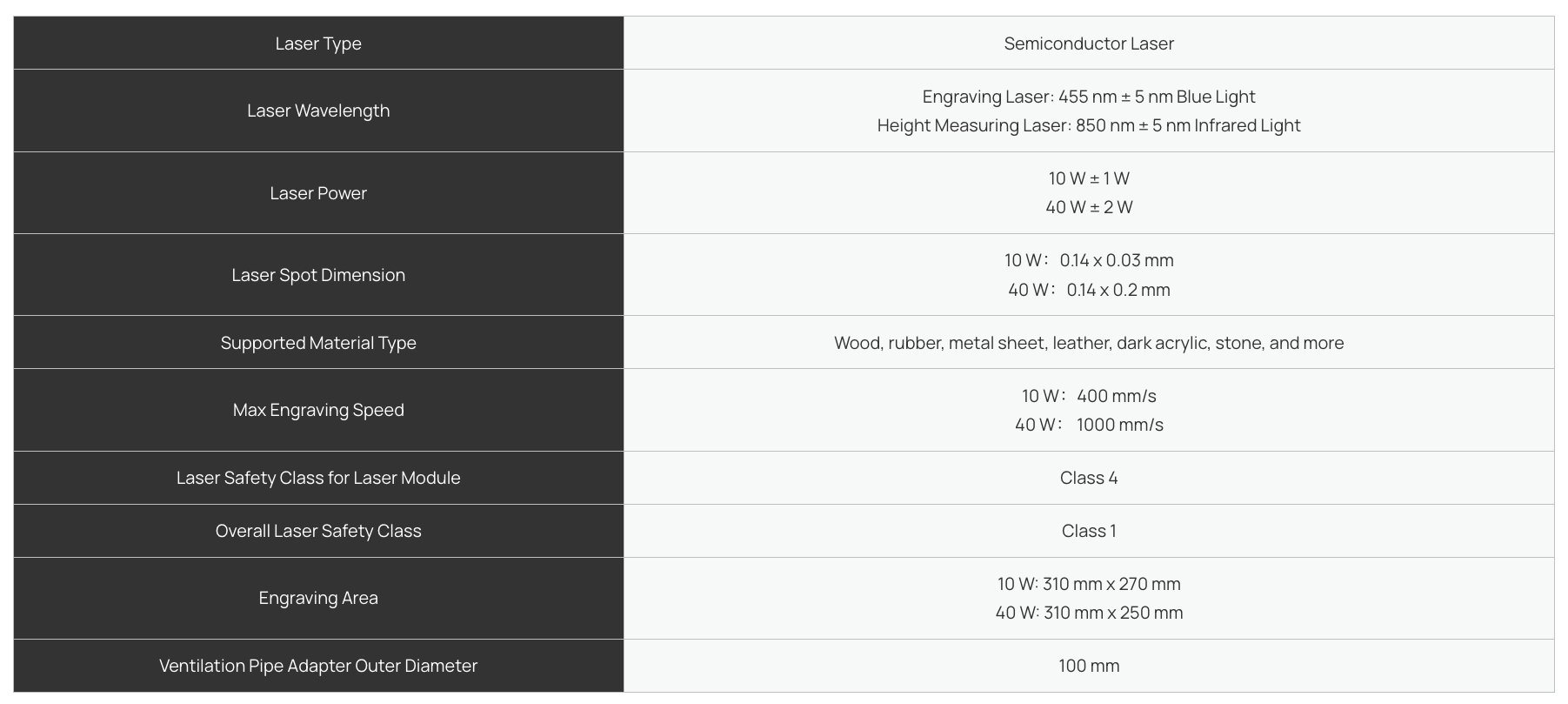

Product Specifications

Installation Guide

Please refer to the installation guide for the Laser Upgrade Kit available on the Bambu Lab Wiki . For a visual walkthrough, we also recommend watching the step-by-step installation video.

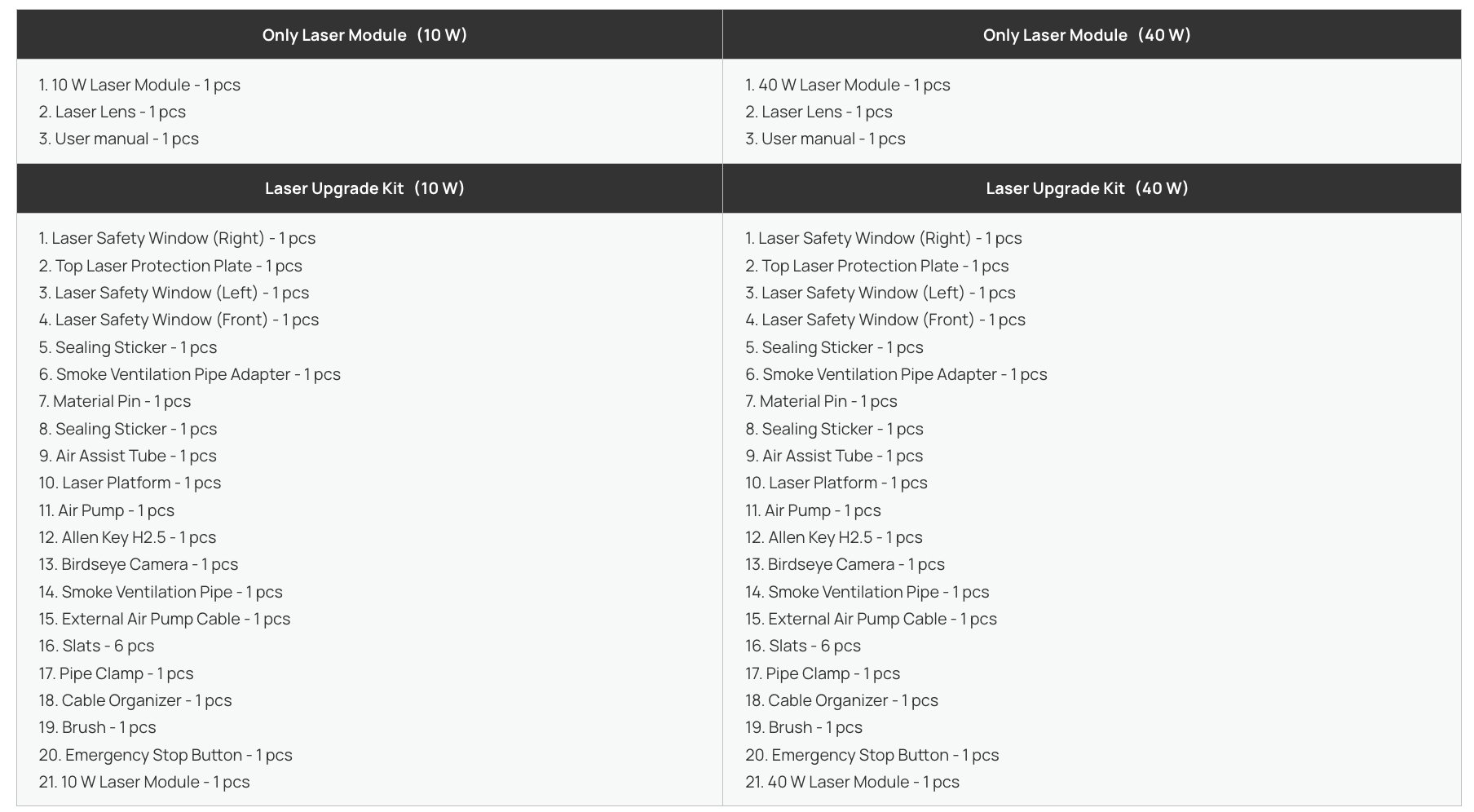

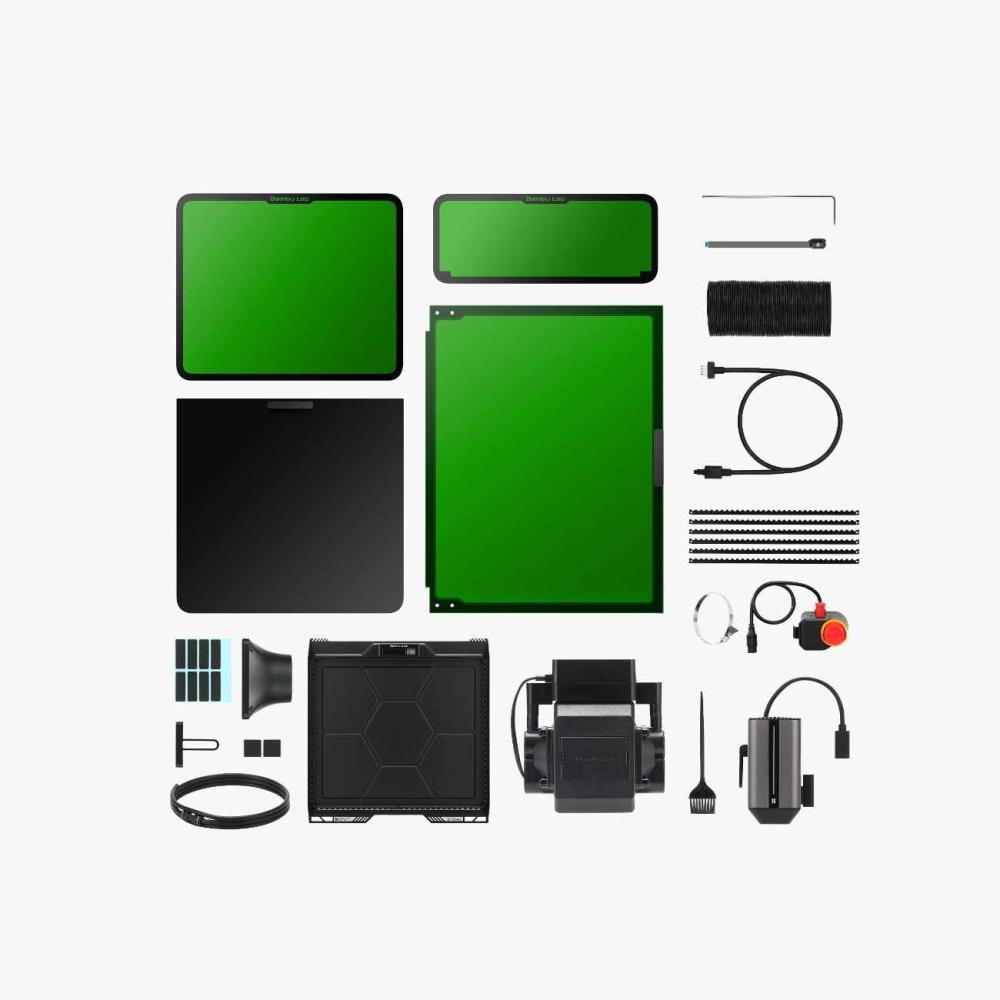

What's in the box
