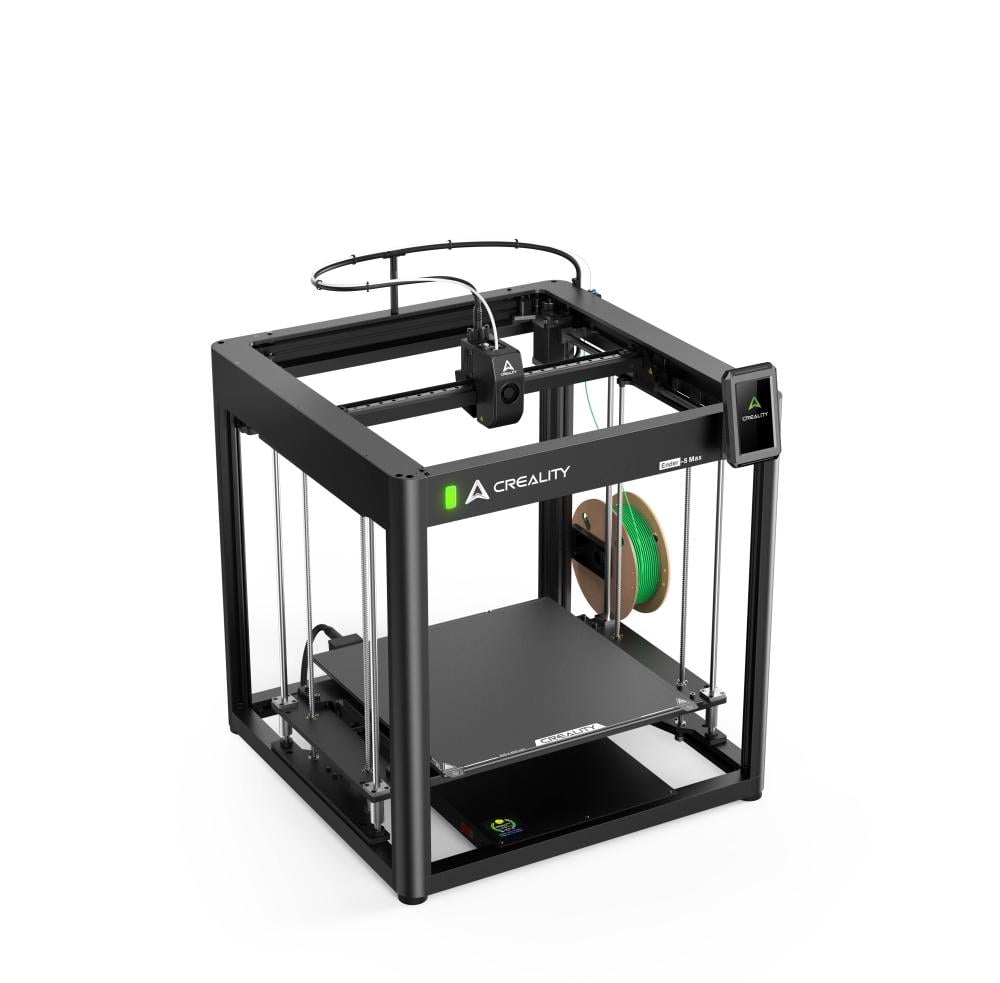

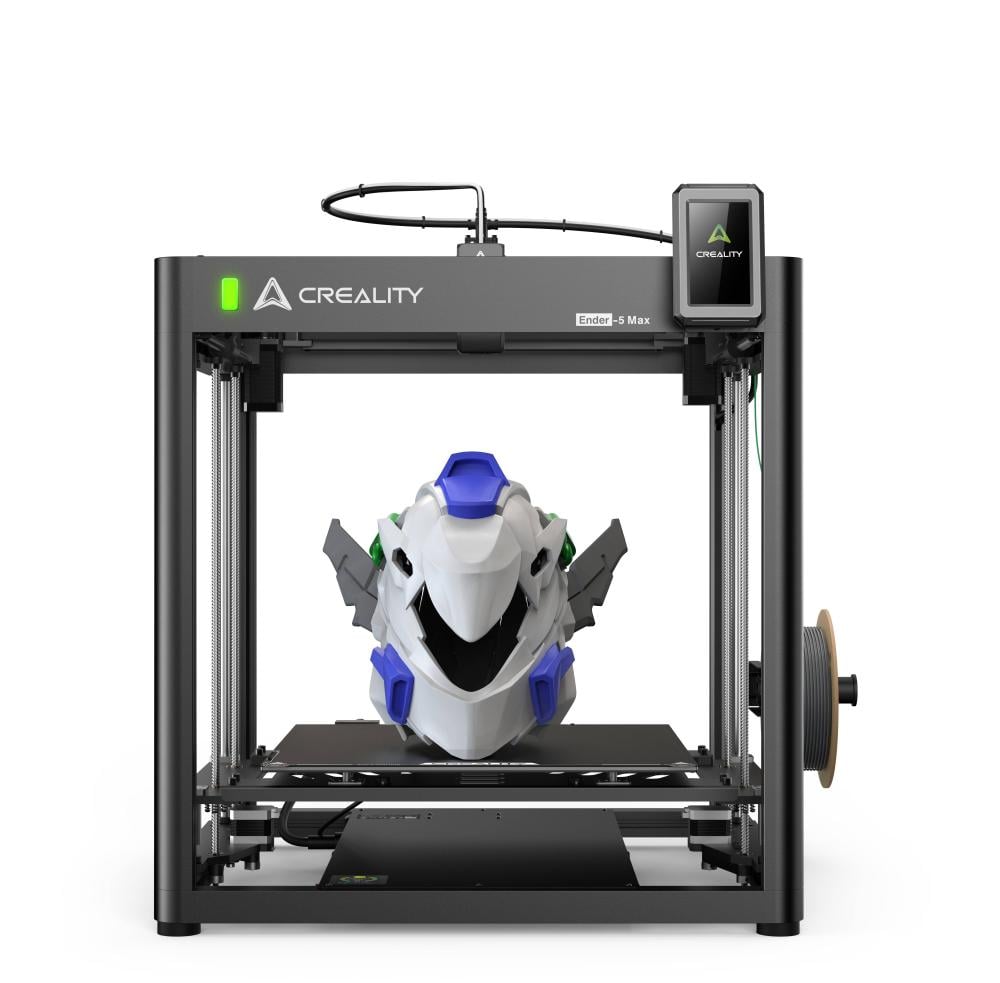

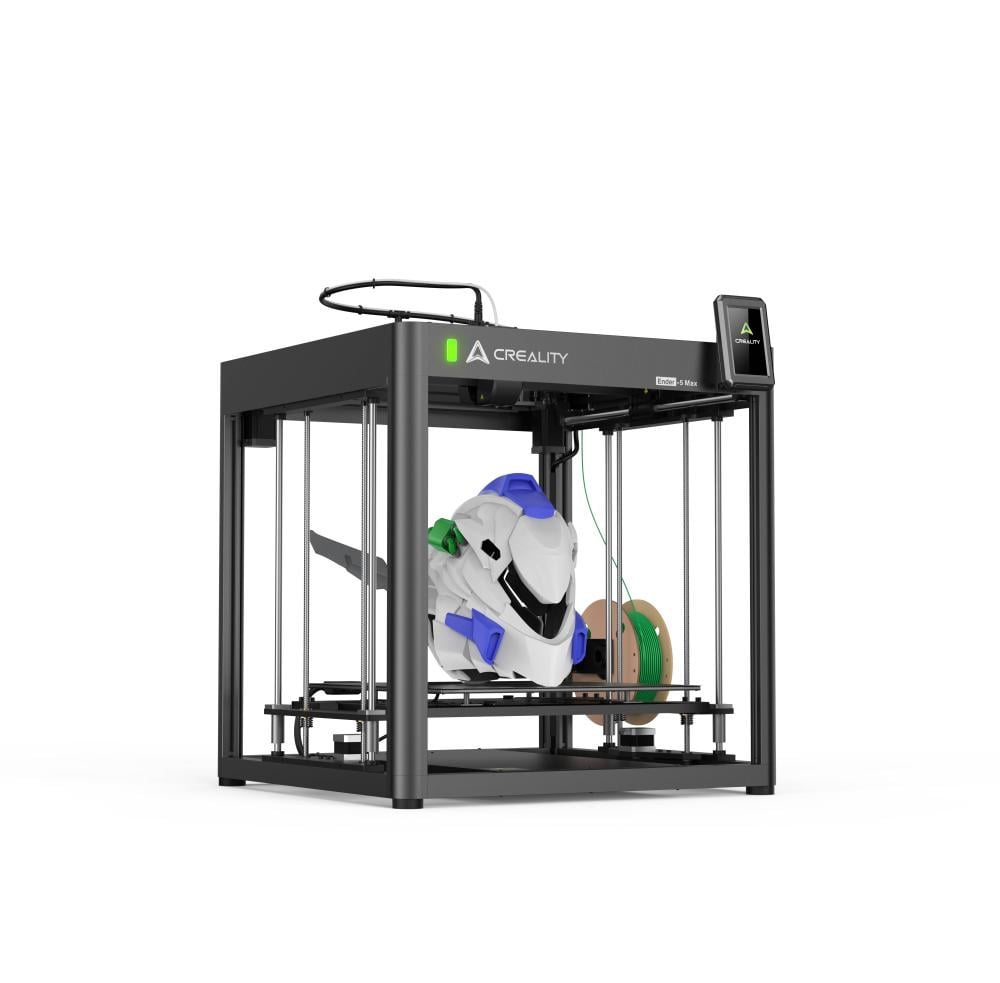

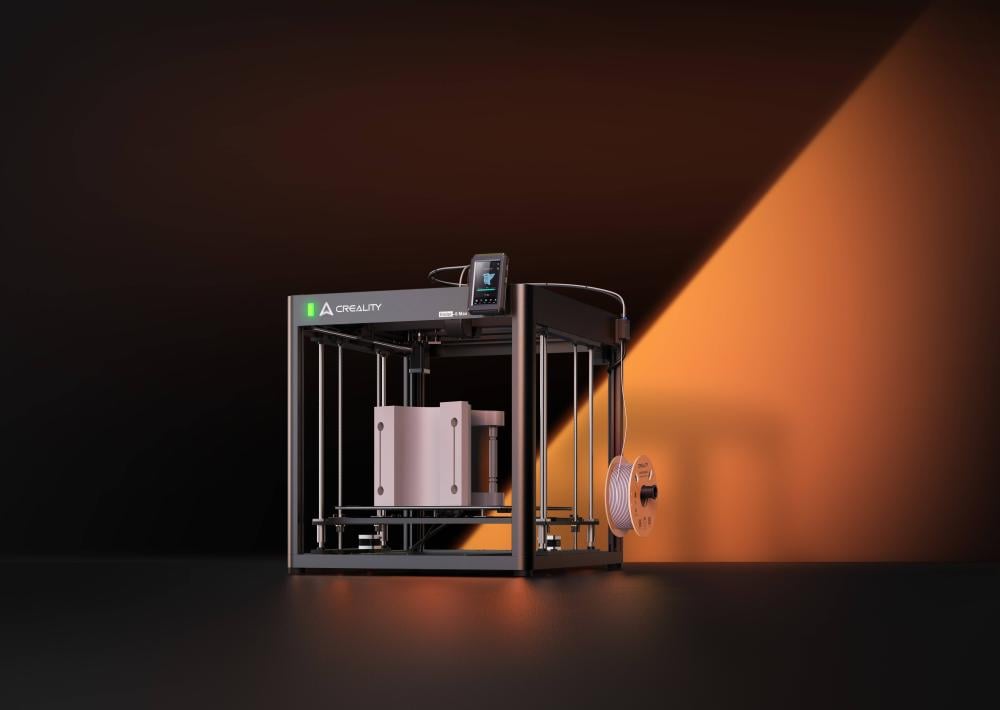

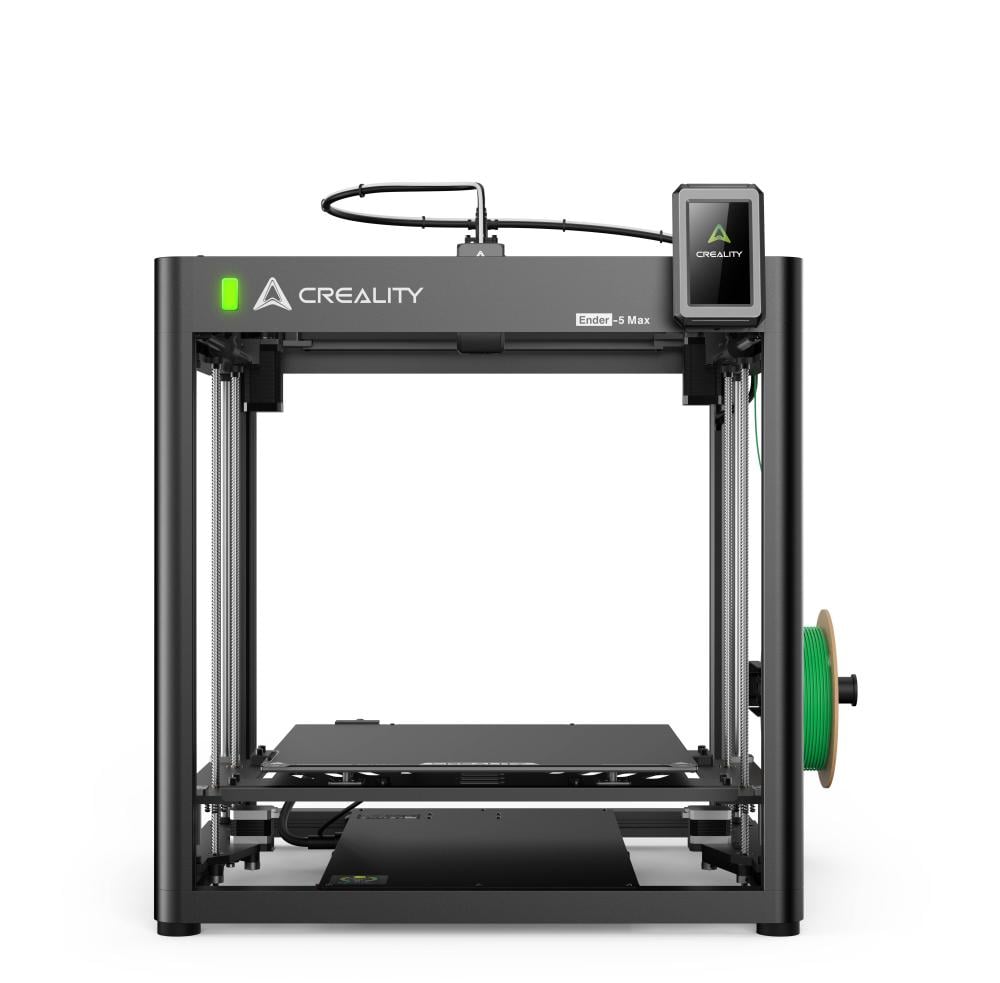

Ender-5 Max
Maximize Your Productivity
Professional Print Quality:
A fully metal frame and automatic bed leveling with 36-point mesh calibration.
Ultra-Fast Printing:
Standard speed up to 700mm/s in a CoreXY-style 3D printer.
Massive Build Volume:
400mm³ build area for printing larger or more models at once.
Designed for Print Farms:
Manage multiple printers over WLAN; tri-color status indicator light.

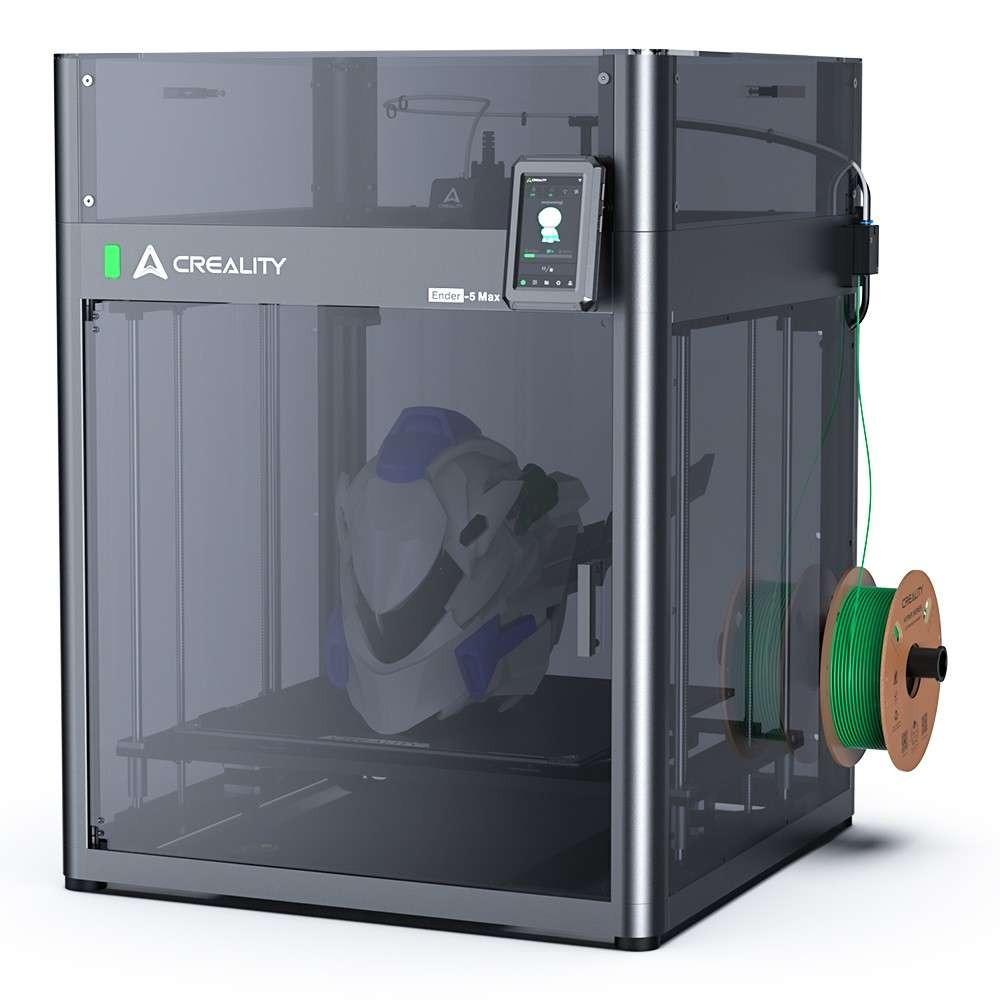

Optional Enclosure:
Supports a higher ambient temperature for printing engineering-grade filaments.
For more detailed information, visit the official knowledge and sharing platform: Creality Wiki.
The Efficiency and Reliability You Need
Exceptional Print Quality
The Ender-5 Max delivers unmatched print quality. The printed dimensions match your design precisely, with smooth and flawless surfaces. Layer adhesion is strong and consistent from the first to the last layer—sure to exceed your clients' expectations.
Excellence Starts with the First Layer
Equipped with a 36-point automatic bed leveling system, the Ender-5 Max ensures a perfectly even first layer. Your high-quality prints begin with this ideal first layer, with no manual intervention required.
Dual Z-Axis Power for Extra Stability
The Ender-5 Max features independently driven dual Z-axes with two lead screws and linear rods per axis. Together, they can smoothly raise and lower models weighing up to 10kg*—no more layer shifts or visible lines between layers.
Rigid Frame and Precise Linear Rail
The frame is reinforced with large die-cast aluminum parts. The X-axis features a precision linear rail for smooth, deviation-free movement—resulting in consistently high-quality prints.
Wide Operating Temperature Range
The Ender-5 Max performs reliably in temperatures between 5°C and 40°C. Even under extreme fluctuations, it resists nozzle clogging and maintains stable performance.

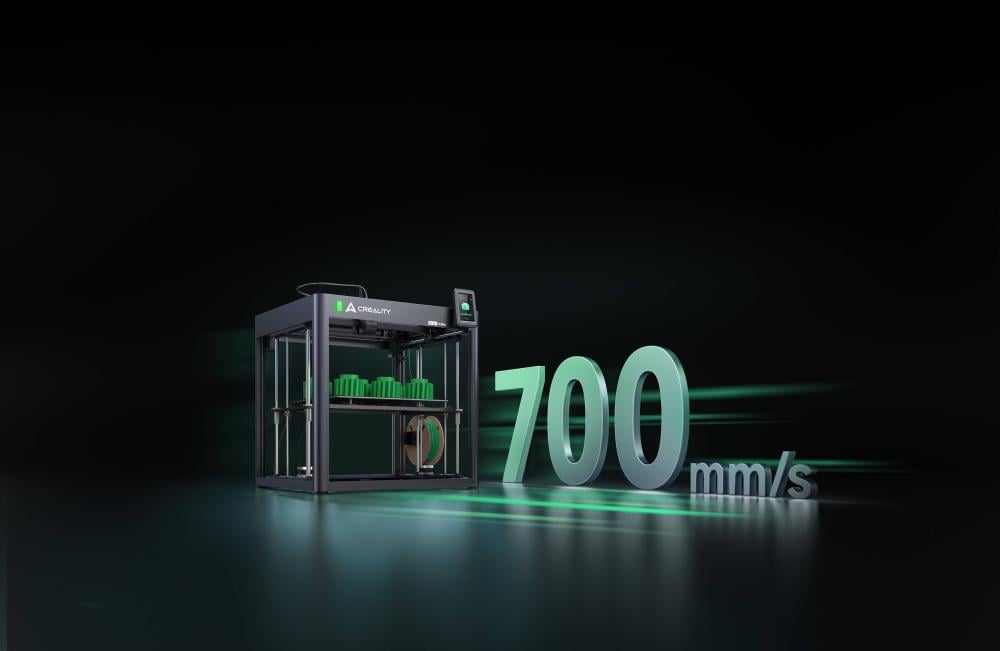

Super-Fast to Save Time
One of the fastest printers in the CoreXY category, it uses 42-76 stepper motors for both X and Y axes, delivering unmatched driving power. With print speeds up to 700mm/s, your jobs will finish in record time.
Reliable Extruder, Minimal Downtime
The dual-gear extruder is reinforced and tested for 500 continuous hours* of printing. It’s built for 24/7 production with minimal interruptions for maintenance or inspection.
Expanded Capacity for More Possibilities

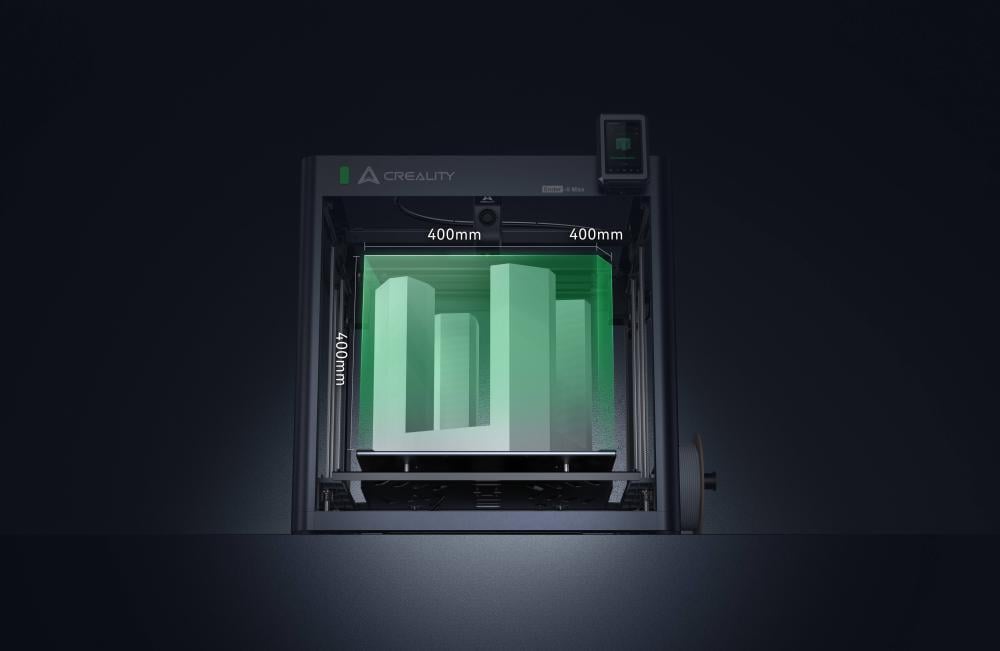

With a rare professional-sized build volume of 400×400×400mm, the Ender-5 Max is ideal for batch printing smaller parts or printing massive models in one go.
1000W Heated Bed for Fast Warm-Up
The 1000W built-in heater can warm the aluminum alloy bed to 80°C (up to 100°C) in just 200 seconds. Suitable for PLA, PETG, PA, ABS, ASA, and more*. Start your production faster and reduce wait times.
New Fully Epoxy Build Plate
Requires lower temperatures for bed adhesion, improving overall energy efficiency. Plus, it’s flexible—making it easier to remove finished prints.

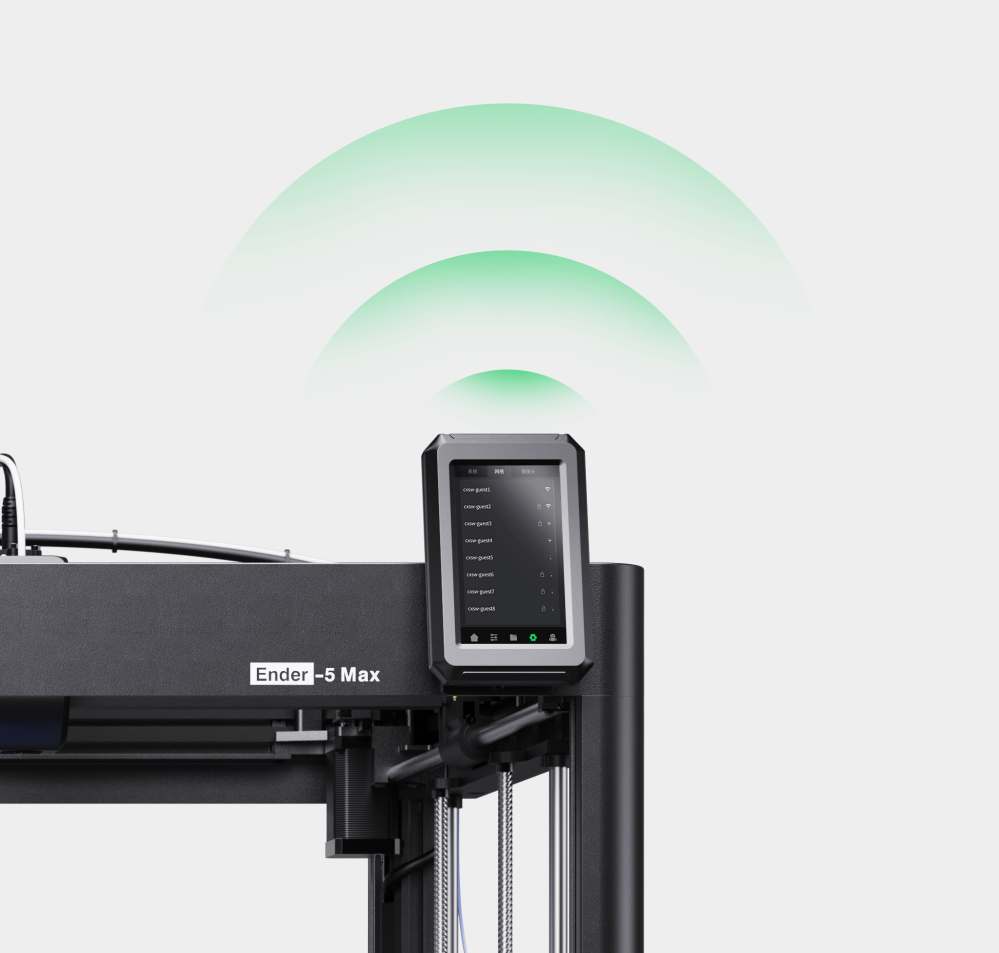

Manage Multiple Printers from One PC
Ender-5 Max comes with pre-configured profiles and settings in Creality Print slicer, allowing you to manage multiple printers through a WLAN-connected computer interface. Keep your production organized and efficient.
Worldwide Voltage Compatibility
Supports input voltage from 100V to 240V—works reliably anywhere in the world without manual switching. Dual fuses in the heated bed ensure your safety and property at all times.
Additional Performance-Enhancing Features
Tri-Color Status Light
A visible indicator light (up to 10 meters*) shows the printer's status instantly—no need to check each printer closely.
Full Specifications
- 3D Printing Technology: Fused Deposition Modeling (FDM)
- Build Volume: 400 × 400 × 400 mm
- Printer Dimensions: 649 × 721 × 850 mm
- Package Dimensions: 732 × 679 × 410 mm
- Net Weight: ≤ 25.9 kg
- Gross Weight: ≤ 31.9 kg
- Max Printing Speed: ≤ 700 mm/s
- Acceleration: ≤ 20000 mm/s²
- Printing Accuracy: 100±0.1 mm
- Layer Height: 0.05–0.3 mm
- Extruder Type: Direct Drive
- Filament Diameter: 1.75 mm
- Nozzle Diameter: 0.4 mm (compatible with 0.6/0.8 mm)
- Nozzle Temp: ≤ 300°C
- Heated Bed Temp: ≤ 100°C
- Build Plate: Flexible epoxy plate
- Leveling Method: 36-point auto leveling
- Status Light: Red / Green / Yellow
- File Transfer: USB drive / Wi-Fi
- Screen: 4.3” full-color touchscreen
- Camera: Optional
- Power Loss Recovery: Yes
- Filament Run-Out Sensor: Yes
- Input Shaping: Yes
- Lighting Kit: Yes
- Sleep Mode: Yes
- Input Voltage: 100–240V AC, 50/60Hz
- Rated Power: 1250W
- Operating Temperature: 5–40°C
- Supported Filaments:
- Hyper PLA / PLA / PETG / TPU95A / ABS / ASA / PLA-CF / PA / PLA-Silk
- Printable File Format: G-code
- Slicing Software: Creality Print 5.1 or later
- Supported Slicing File Formats: STL, OBJ, 3MF
- UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese, Korean, Chinese
- Cloud Printing App: Creality Cloud
