Rotary Kit Pro for Curved Surface Engraving

Rotary Kit Pro for Curved Surface Engraving – Versatility and Precision in OneExpand your Creality Falcon2's capabilities with the Rotary Kit Pro, designed for engraving on cylindrical, conical, spherical, and ring-shaped objects. This Rotary Kit Pro features multifunctional, adjustable jaws, offering one-handed clamping and high precision for a wide range of curved works.

Key Features:

• Multifunctional Adjustable Jaws: One set of jaws can handle objects of various shapes, offering both external clamping and internal support for versatile engraving projects.
• One-handed Clamping: The set screws ensure stability, allowing you to clamp items with one hand, which simplifies operations and requires fewer operators.
• Adjustable Rotary Chuck: Enjoy 360° rotating engraving. The chuck can be adjusted using the hex stud and jaws to fit both large and tiny objects.
• Anti-slip Soft Pad: Enhances friction to securely hold fragile items, preventing damage during engraving and ensuring high-quality results.
• No Assembly Required: The kit is ready to use right out of the box—simply connect it to your machine and start engraving.
• High Precision & Wide Range: Supports a wide variety of cylindrical, conical, spherical, and ring-shaped objects with precision.
• Compatible with Various Engraving Software: Works with LightBurn and LaserGRBL, and is compatible with other brands as well, making it highly versatile.

Supported Objects and Sizes:

• Cylindrical Objects: Thermos cups, mugs
• Clamp from the outside: Diameter 1-110mm
• Prop up from the inside: Diameter 25-75mm

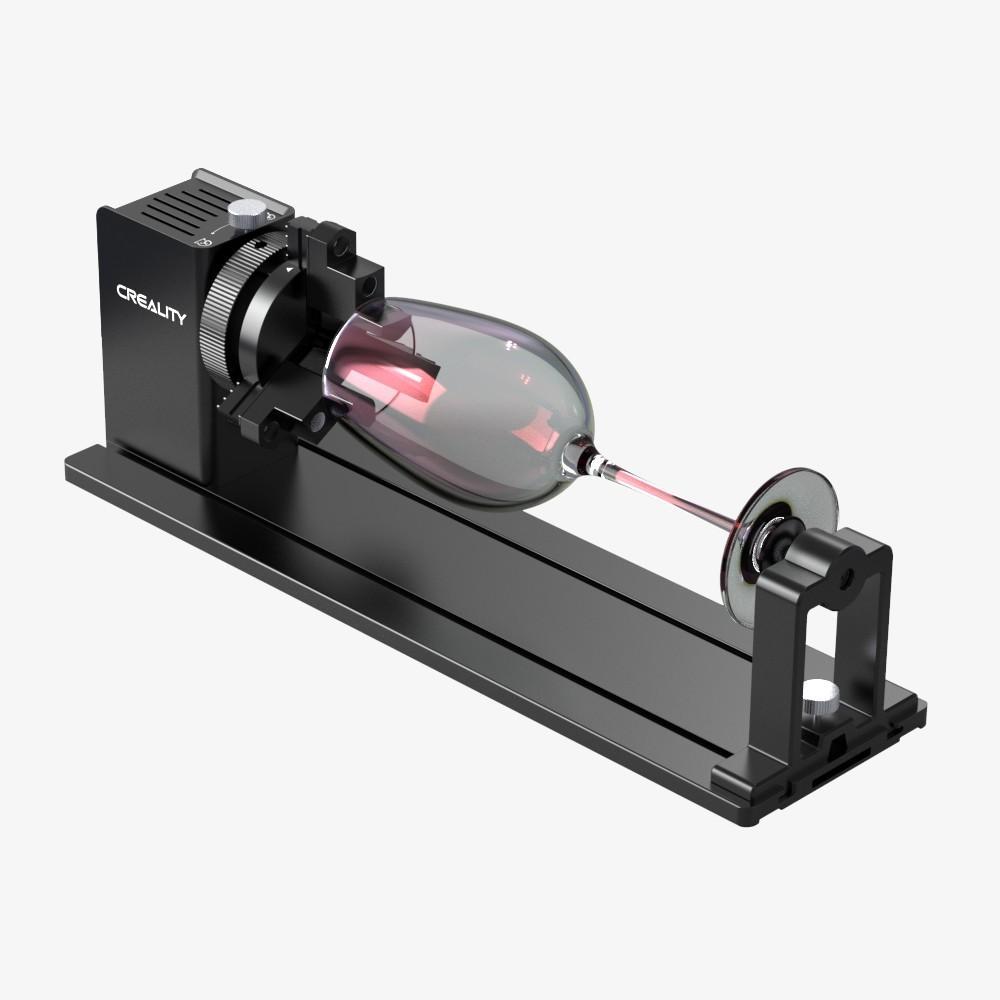

• Conical Objects: Goblets, conical bottles
• Hemispherical Objects: Bowls

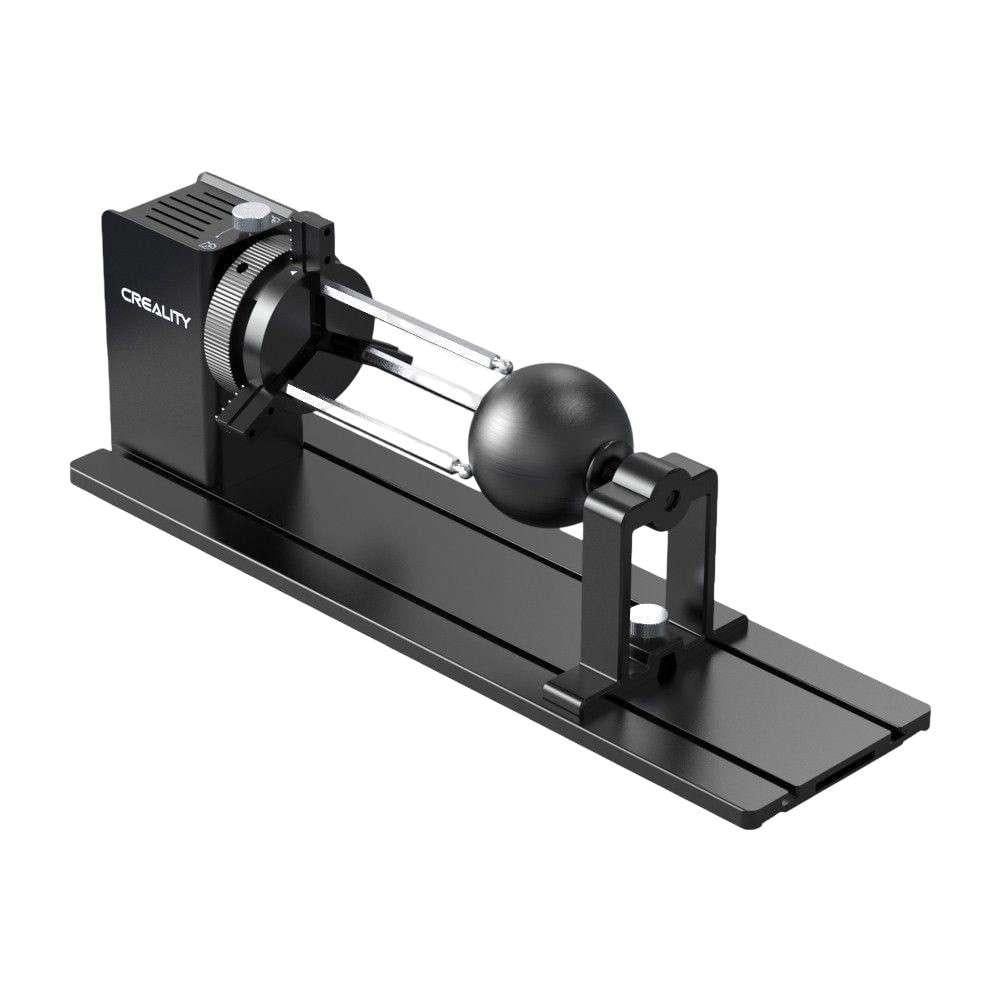

• Spherical Objects: Crystal balls, oranges
• Hex stud: Diameter 10-130mm

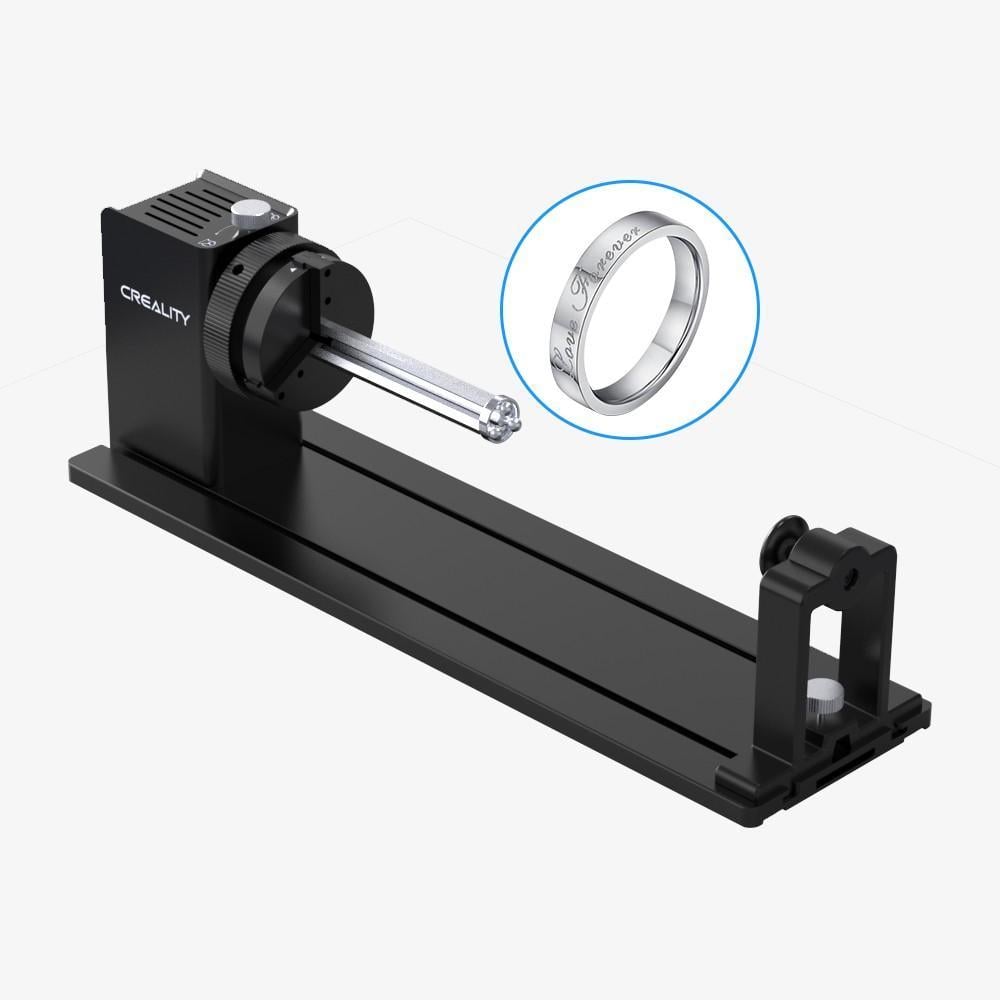

• Ring-shaped Objects: Rings, bracelets
• Hex stud: Diameter 15-100mm

Dimensions:

• Rotary Kit Pro: 360 x 122 x 100 mm
• Clamp Diameter Range:
• Clamp from the outside: 1-110mm
• Prop up from the inside: 25-75mm
• Hex stud: 10-130mm (for spheres and rings)

Compatible Models:

• Creality Falcon2 12W
• Creality Falcon2 22W
• Creality Falcon2 40W
• Creality Falcon2 Pro 22W
• Creality Falcon2 Pro 40W
• Creality Falcon2 Pro 60W

The Rotary Kit Pro is an excellent addition for anyone using the Creality Falcon2 who wants to extend their engraving capabilities to a wide variety of curved objects with precision and ease. Perfect for creating custom engravings on a diverse range of items, including mugs, goblets, rings, and more.
