Bambu Dual-Texture PEI Plate

Name: Bambu Dual-Texture PEI Plate
Brand: Bambu Lab
SKU: bambu-dual-texture-pei-plate/p335265404
Price: 260 SAR
Availability: InStock

260

Weight

4 KG

Bambu Dual-Texture PEI Plate

260

Add to cart

Details

Bambu Textured PEI Plate

🔹 Bambu Lab Textured PEI Plate✔️ Excellent First Layer Adhesion | ✔️ Improved Durability | ✔️ Compatible with Various Filaments

✨ Product Features:

🔸 Excellent Adhesion & Enhanced Durability

The manufacturing process has been upgraded to offer better durability and improved first-layer adhesion without glue in most cases.

(Some specialty filaments may still require glue.)

🔸 Easy Release After Cooling

Once the build plate cools down below 35°C, prints self-release. Simply bend the plate gently, and the model will pop off right into your hand.

🔸 Textured Surface Finish

This plate is coated with a fine texture that gives your models a beautiful, professional look straight from the first layer.

🔸 Wide Filament Compatibility

Works seamlessly with PLA, TPU, PETG, ABS, Nylon, and other high-temp materials.

🔸 Strong Magnetic Hold

Built from 0.5mm thick stainless steel to ensure strong magnetic attraction, minimizing warping and first-layer issues, especially for large prints or materials prone to shrinking like ABS, PC, or Nylon.

🧼 Usage & Maintenance Tips:

Increase bed temperature to boost adhesion when needed.
Regularly clean with mild detergent and water to remove dust or oils.
Avoid acetone – it can damage the PEI coating.
Use only official Bambu glue if required – other glues may ruin the plate.
Wait for the plate to cool before removing prints to avoid damage.
You can gently sand the surface with 600 grit sandpaper to refresh adhesion.
This plate is considered a consumable. Warranty covers manufacturing defects only, not wear from normal use.

⚙️ Recommended Settings by Filament Type:

PLA / PLA-CF / PLA-GF
🔥 45~60℃ | 🧴 No glue required | 🪟 Remove glass cover: Yes
ABS (Not compatible with A1 mini)
🔥 90~100℃ | 🧴 No glue required | 🪟 Remove glass cover: No
PETG / PETG-CF
🔥 60~80℃ | 🧴 No glue required | 🪟 Remove glass cover: No
PET-CF (Not compatible with A1 mini)
🔥 80~100℃ | 🧴 No glue required | 🪟 Remove glass cover: No
TPU
🔥 35~45℃ | 🧴 Glue required | 🪟 Remove glass cover: Yes
ASA (Not compatible with A1 mini)
🔥 90~100℃ | 🧴 No glue required | 🪟 Remove glass cover: No
PVA
🔥 45~60℃ | 🧴 No glue required | 🪟 Remove glass cover: Yes
PC / PC-CF (Not compatible with A1 mini)
🔥 90~110℃ | 🧴 Glue required | 🪟 Remove glass cover: No
PA / PA-CF / PAHT-CF (Not compatible with A1 mini)
🔥 90~110℃ | 🧴 Glue required | 🪟 Remove glass cover: No

🔧 Installation Instructions:

For X1 / P1 / A1 Printers:

Make sure the side with the Bambu logo is facing you.
Gently place the plate down and align it with the magnetic base.

For A1 mini Printer:

Follow the same steps as above.

📐 Technical Specifications:

Material: Stainless Steel + Textured PEI Coating
Heat Resistance: Up to 180°C
Thickness:
PEI: 0.075 mm
Steel Plate: 0.5 mm / 0.4 mm
Available Print Sizes:
350×320 mm
256×256 mm
180×180 mm
Packaging Dimensions:
408×388×17 mm
300×270×17 mm
220×190×15 mm
Package Weights:
0.78 kg
0.45 kg
0.23 kg

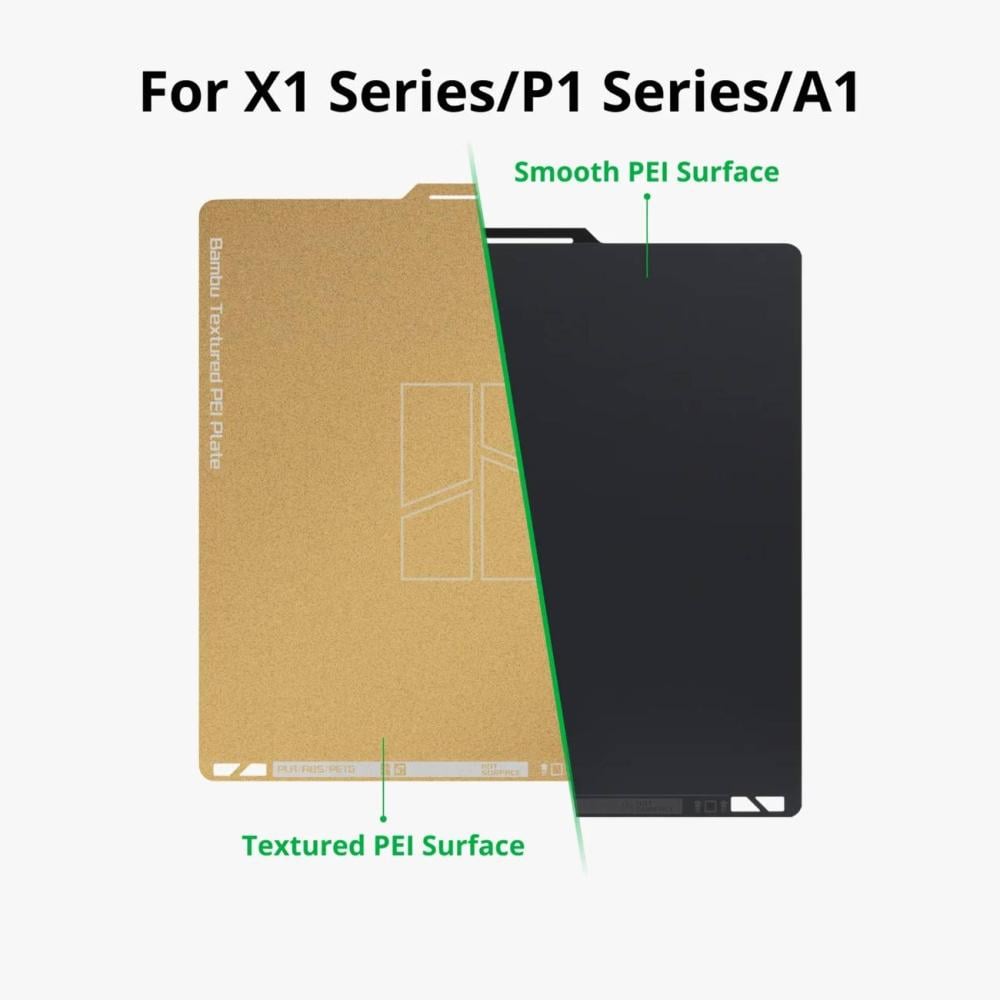

Two Textures (Textured and Smooth) in One Plate

Enjoy the benefits of two different textures in one plate, one side is Textured PEI surface and the other side is Smooth PEI surface. This Plate features a 0.5mm magnetic stainless steel plate that enhances magnetic adhesion and helps to prevent warping and ensure optimal print quality during 3D printing.

Smooth PEI surface:

High Z-axis Precision Printing

Smooth PEI surface contributes to improved Z-axis precision during the printing process, ensuring greater accuracy and consistency in the vertical dimension.

Smooth and Matte Surface Finish

The use of a specially selected matte PEI sheet can impart a smooth and matte texture to the bottom surface of the printed object, enhancing its overall appearance.

Textured PEI surface:

Excellent First-layer Adhesion and Improved Durability

Textured PEI surface has enhanced the durability, and improved the adhesion between the prints and the plate, eliminating the need for adhesives.

*In some situations, glue is required for very specific filaments

Self-release when Cooled Down

Textured PEI surface can withstand the repeated heating and cooling cycles of a printer heatbed. Prints come off easily when the temperature of the heatbed reaches room temperature.

Considerations

Deposition of dust and grease on the build plate decrease adhesion. It is recommended to regularly clean the surface with detergent and water to to maintain best adhesion.
Increasing heatbed temperature enhances adhesion. Users need to adjust the temperature of the heatbed based on their specific requirements in order to achieve the most suitable level of adhesion.
Carefully sanding the Textured PEI surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
If bubbles appear on the bottom of the Smooth PEI sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
Do not clean the Bambu Dual-Texture PEI Plate with Acetone, as it will damage the PEI surface.
Bambu Lab recommends only using Bambu Lab official glue on the Bambu Lab build plates, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates.
Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
The Bambu Dual-Texture PEI Plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
